HIGH ENERGY ERBIUM LASER END-PUMPED BY A LASER DIODE BAR ARRAY COUPLED TO A NONIMAGING OPTIC CONCENTRATOR
E. Tanguy [+], G. Feugnet, JP. Pocholle, R. Blondeau, MA. Poisson, JP. Duchemin,
Laboratoire Central de Recherches, Thomson-C.S.F., Domaine de
91404 Orsay Cedex, France.
[+] FacultÚ des Sciences et des Techniques de Nantes
Groupe de Physique des Solides pour lElectronique
2, rue de la HoussiniŔre BP 92208
Nantes cedex 03
A high energy Er3+,Yb3+:glass laser end pumped by a laser diode array emitting at 980 nm coupled to a Nonimaging Optic Concentrator (NOC) is demonstrated. Energy up to 100 mJ and a 16% slope efficiency are achieved in plano-plano laser cavity.The energy transfer coefficient from Yb3+ to Er3+ is estimated by a new method.
A high energy compact laser emitting in the 1.5 Ám eye-safe spectral range will find very promising applications in the fields of telemetry or lidar . Codoped Er3+,Yb3+ phosphate glass  end pumped by a laser diode bar array leads to a low-cost, compact micro-laser operating at 1.5 Ám . A stack of laser diode bar array collimated in the fast axis by microcylindrical lenses associated to a lens duct was already used to end-pump a Nd3+:YLF laser oscillator, and our laboratory has already demonstrated the use of laser diode bar array coupled to a Nonimaging Optic Concentrator (NOC) to increase the efficiency of a Nd:YVO4 laser . In this paper, we present an Er:Yb:glass laser using such a configuration.
Pump source :
The laser diode bar array used in this experiment was manufactured by THOMSON-CSF Semi-conducteurs SpÚcifiques and THOMSON-CSF LCR. It consists of a 10 mm wide bar with about 70 emitters. The threshold current is around 16 A and the external quantum efficiency is 1.1 W/A. At an operating current of 90 A, we measured an 80 W peak power with a 10 ms pulse duration and a 2 Hz repetition rate (see Figure 1). The bar emission wavelength is centered at 964 nm with a FWHM spectral width of 12 nm.
Figure 1 : Input and output energy versus the pump current. Current pulses are 10 ms long and the repetition rate is 2 Hz.
The laser diode bar has a 7░ FWHM beam divergence in the slow axis and a 37.5░
FWHM divergence in the fast axis.
This laser diode bar associated with a Nonimaging Optic Concentrator (NOC) was used to end pump an Er3+:Yb3+:glass rod (see Figure 2).

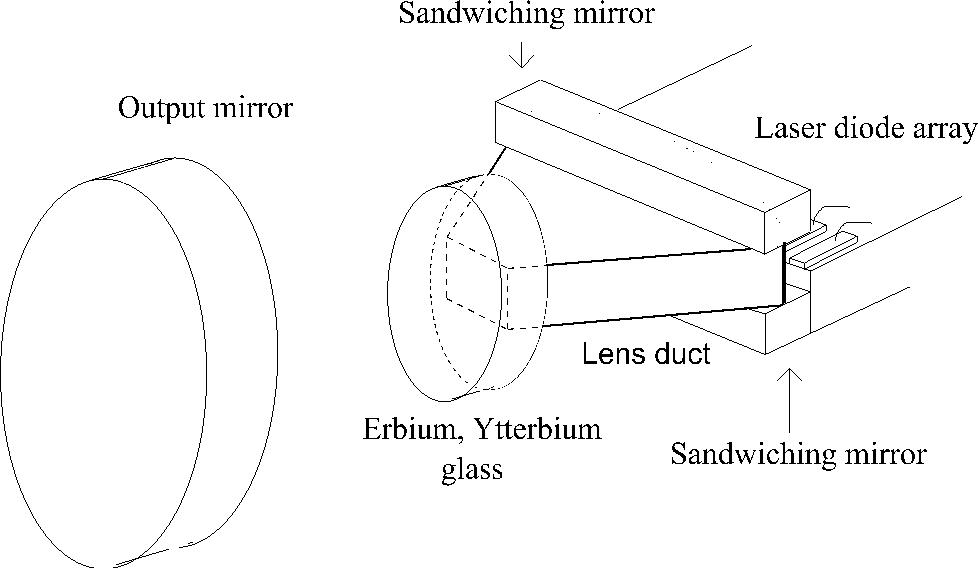

Figure 2 : Laser cavity layout.
In this configuration a quasi-symmetric high energy source was achieved. The emissive surface of the laser diode bar array, typically 10 mm ┤ ╗ 1 Ám, cannot efficiently match to obtain an intracavity TEM00 mode. By using the NOC, we obtain an emissive area of 1.5 ┤ 1.5 mm2, contributing to increase the overlap between the pump distribution and the intracavity TEM00 mode.
The design of the NOC was described in . The bar width is reduced to 1.5 mm and the lens duct thickness is constant and equal to 1.5 mm, so that the energy is concentrated into a square of 1.5┤ 1.5 mm2 cross section. The input face in front of the NOC has a 9.8 mm radius of curvature. Conforming to the Útendue invariance law , the HWHM (Half Width at Half Maximum) divergence in the slow axis should be ╗ 35░ while the HWHM divergence in the fast axis plane remains unchanged (18░ in our case).
A theoretical coupling efficiency was calculated to be between 87% (with no anti-reflection coating at the NOC faces) and 92% (with a perfect anti-reflection coating at the NOC).
A 90% coupling efficiency was measured (see Figure 1). With this device a pump source delivering about 700 mJ concentrated into a 1.5┤ 1.5 mm with a 70░┤ 36░ FWHM divergence in the slow and in the fast axis respectively.
A ray tracing plot for this source is given Figure 3.

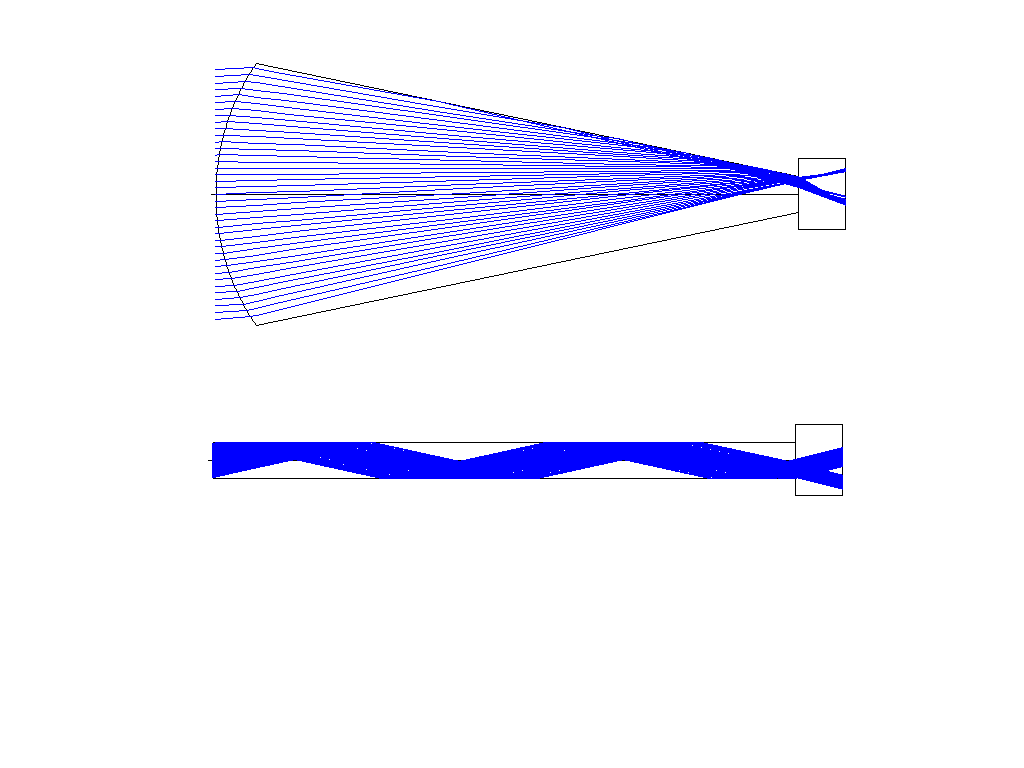

Figure 3 : Ray-tracing plot of the lens duct for rays emitted at an angle of 3.5░ in the array slow-axis (a) and at an angle of 18.75░ in the array fast-axis (b).
Laser experiment :
The laser cavity is shown inFigure 2. The Er3+:Yb3+:glass is a commercially available Er3+,Yb3+ codoped glass provided by Kigre Inc. According to Kigre Inc., this new glass presents better thermal performance than previous one , which makes it very attractive for use with high pump powers. The glass disc is 10 mm in diameter and 2 mm long. The NOC is in contact with the input face of the rod. One face of the rod is high-reflection coated at 1.54 Ám and presented a good transmission at 980 nm (>90%); the other face is anti-reflection coated at 1.54 Ám. The output mirror reflection is 99% at 1.54 Ám. The total cavity length is around 10 mm. The laser rod is uncooled.
Figure 4 depicts the output energy of the free-running mode versus the pump energy incident upon the laser glass.

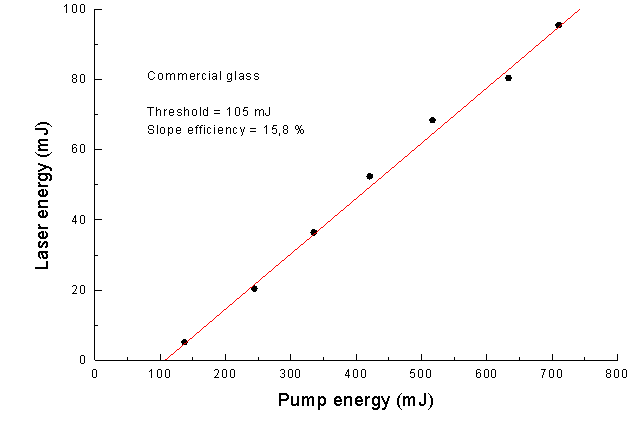

Figure 4 : Output energy versus pump energy for 10 ms long pulses and 2 Hz repetition rate.
The transverse mode of the laser is similar to the pump mode : rectangula,. so we
can assume that the plano-plano cavity is stabilized more by gain guiding than thermal
lensing. We have not performed thermal lensing measurement but we do not observe thermal
degradation of the slope effeciency as the pump power is increaded(see Figure 4).
From experimental data, a 105 mJ pump energy threshold and a slope efficiency of 16 % were measured.
If the pulse shape du to relaxation oscillation is neglected and if the laser pulse is almost rectangular,then the peak power was 10 W.
The repetition rate is limited to 2 Hz by thermal effects in the diode bar. With a 10 ms pulse duration increasing the repetition rate leads to a drastic reduction of the emitted power.
The temporal profile of the laser pulse is shown Figure 6.
The laser pulse begins 500 Ás after the current pulse. This delay time ris the result of :
the time to excite Yb3+ ions by the pump
the energy transfer from Yb3+to Er3+ ions
the laser pulse build-up.
Estimation of the energy transfer coefficient from Yb3+ to Er3+ ions.
The energy transfer coefficient from Yb3+ to Er3+ ions is an
important parameter to model the laser performance. This parameter was already
investigated in phosphate-doped glasses and estimated between 2.10-22 m3.s-1
and 5.10-22 m3.s-1  but not in this material.
It seems to be possible to evaluate it from the decay time of the laser emission and from
the simple rate equations.
The beginning of the pulse is characterized by oscillations due to the Yb3+,Er3+ energy transfer and laser relaxation followed by a pseudo-steady state that begins at about 1 ms. At 10 ms, the laser output decreases at the same speed as the upper level population of the ytterbium decrease.
The population parameters of each level are given in Figure 5.

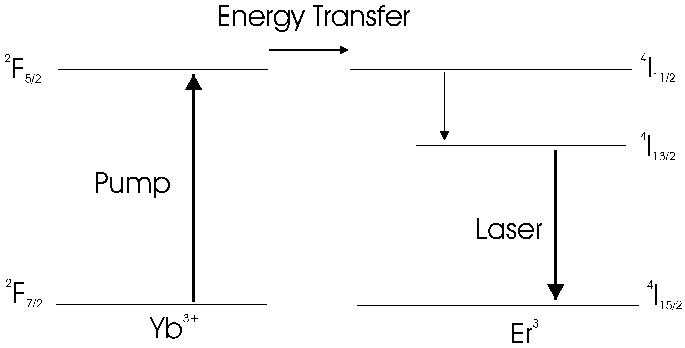

Figure 5 : Energy diagram of the energy transfer between the Yb and Er ions.
Assuming that the Er3+ 4I11/2 lifetime is very
short (@ 100 Ás), we have neglected the back energy transfer
from Er3+ to Yb3+.
To describe these phenomena, we can write the rate equations governing the population of each level :
is the pump term, is the energy transferred from Yb3+ to Er3+, is the Yb3+ decay, is the decay from level i to level j, and is the stimulated emission.
Where s p is the absorption cross section, s e is the emission cross section (8.10-25 m2), g yb is the yb3+ decay rate (103 s-1), g ij is the decay rate from level j to level i, k is the energy transfer coefficient from Yb3+ to Er3+, F p(r,t) is the pump flux, and F l(r,t) is the laser flux.
After the pseudo-steady state, the laser output decreases. The erbium upper laser level stays at the same population as the threshold one. The laser power decreases at the same rate as the ytterbium upper level.
with Ner : erbium concentration (1.4.1025 m-3 in
The solution is a decreasing exponential :
|with a time constant and 0 < n2t < 1.||
If we can estimate n2t, we are able to estimate the time energy transfer coefficient k. If the cavity losses (except output coupling) can be neglected, the internal gain can be estimated as more than 1 %.
|The round trip gain is :||
where l = laser rod length. G > 1 % leads to n2t > 0.61.

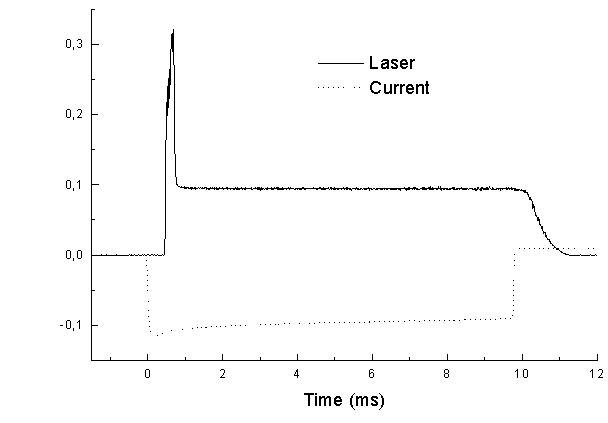

Figure 6 : Laser pulse and current pulse versus time.
According to Figure 6, we measured t ╗ 450 Ás. Thus we find that k is greater than 2.24.10-22 m3.s-1. In this three level system, we can reasonably conclude that n2t < 0.85. Finally we obtain 2.24.10-22 m3.s-1 < k < 5.8.10-22 m3.s-1. These results are in good agreement with the results mentionned in .
We have deminstrated a high energy laser emitting at 1.54 Ám. It was end pumped by a laser diode bar array associated with a Nonimaging Optic Concentrator and delivered up to 100 mJ in a 10 ms long pulse at a 2 Hz repetition rate. We have estimated by a new method the energy transfer coefficient from Yb3+ to Er3+ between 2.24.10-22 m3.s-1 and 5.8.10-22 m3.s-1.
 V.P. Gapontsev, S.M. Matitsin, A.A. Isineer, V.B. Kravchenko, " Erbium glass and their applications ", Optics and Laser Technology, 14. pp. 189-196, 1982.
 Shibin Jiang et al., " Laser and thermal performance of a new erbium doped phosphate laser glass ", KIGRE Inc. technical paper.
 P. Laporta, S. Taccheo, S. Longhi and O. Svelto, " Diode-pumped microchip Er-Yb:glass laser ", Opt. Lett., 1993, 18, pp 1232-1234.
 R. Beach, P. Reichert, W. Benett, B. Freitas, S. Mitchell, A. Velsko, J. Davin and R. Solarz, " Scalable diode-end-pumping technology applied to a 100 mJ Q-Switched Nd3+:YLF laser oscillator ", Opt. Lett. 18, pp1326-1328, 1993.
 G. Feugnet, C. Bussac, M. Schwarz, C. Larat, and J.P. Pocholle, " High efficiency TEM00 Nd:YVO4 laser longitudinally pumped by a high power laser diode array ", Opt. Lett. 20, pp. 157-159, 1995.
 G. Feugnet, C. Bussac, M. Schwarz, C. Larat, and JP. Pocholle, " High efficiency TEM00 Nd:YVO4 laser longitudinally pumped by a high power laser diode array ", Proc. SPIE " Nonimaging Optics III : Maximum Efficiency Light Transfer ", 1995.
 T. Welford and R. Winston, High Collection Nonimaging Optics, pp 53-114, Academic Press, 1989.
 S. Jiang, J. Myers, D. Rhonehouse, M. Myers, R. Belford, and S. Hamlin, " Laser and thermal performance of a new erbium doped phosphate laser glass ", SPIE Vol. 2138, Longer-Wavelength Lasers and Applications, 1994.
 V.P. Gapontsev et al., Optics and Laser Technol., 14, 189 (1982).
 V.P. Gapontsev and N.S. Platonov in Dynamical Processes in Disordered Systems, ed. W.M. Yen, Material Science Forum 51, Aedermannsdorf, Switzerland, 1989.
 J. Nilson, P. Scheer, and B. Jaskorzynska, IEEE Photon. Technol. Lett., 6, 383 (1994).
